Cheap Price Stainless Steel Water Tank Drinking Water Food Grade Water Tank for Farm HOTEL

Stainless Steel Water Tank Specification:

Stainless steel water tank is the best material of water reserve. It has two connection types: argon arc welding & bolted. The appearance and structure of bolted type is same with hot dipped galvanized water tank. Raw material can be SS304/2B and SS316L.

Welding type Water Tank:

Stainless steel grades, such as the 316 or 304 types which are generally suitable for storing both cold and heat drinking waters. There are two connection ways including bolt-connection and welding connection. For welding type, it is connected through argon welding way and it is more fast to installation completion. Both two types stainless steel water tank could meet the high precise science and technology water storing or somewhere with strict water quality demands. In addition,stainless steel welding water tank is afraid of high chloride concentration water. Welding point will reduce the nickle content and lose the ability to prevent corrosion from high chloride water.

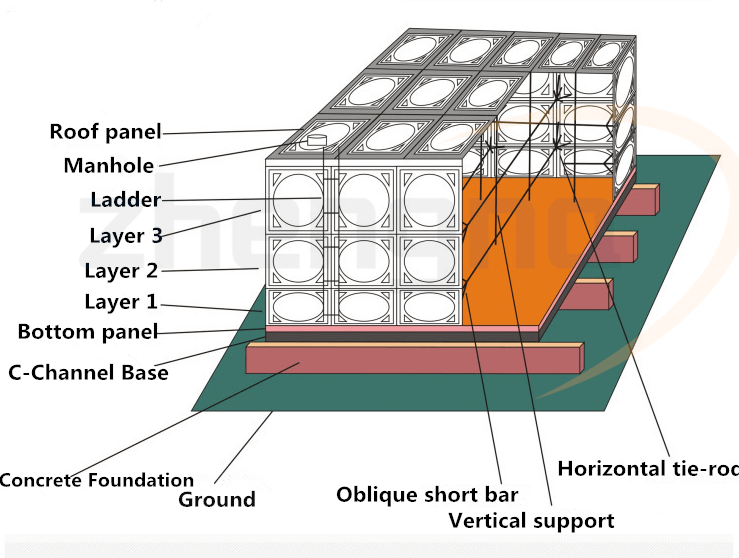

Stainless Steel Water Tank structure:

The standard tolerance of thickness is 0.25mm. For example, the actual thickness of 3mm is 2.75mm.

Stainless steel water tank panel:

Stainless steel panel size has 500*500mm, 1000*500mm, 1000*1000mm, 1500*1000mm and 2000*1000mm.

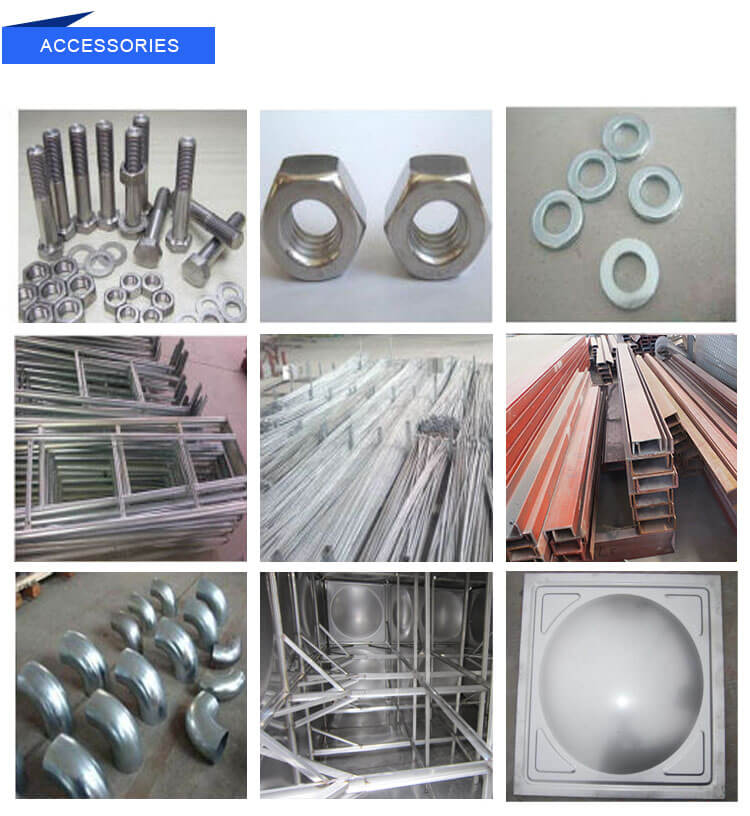

Bolt. nut & washers: stainless steel 304 material.
Sealing material: welding rod
Covers:The tank cover shall be constructed from 1.2mm to 3.0mm of thickness stainless steel 304 material according to the requirement
Flanges :The sectional panels shall be pressed to double flanges at the angles of 45 degree and 90 degree to the face of the plate on four sides.
Reinforcement Method :All tanks are internally braced with angle stays to endure the rigidity of the tank when filled with the water. The Top panel is supported

by top panel support, which shall be made of stainless steel grade 304 or 316 material according to requirement.

Advantages of Stainless steel water tank:

1. ANTI-CORROSION

The raw material adopt pure stainless steel 304 or 316; it has excellent corrosion resistance.

2. POTABILITY

The stainless steel material can be implanted into the human body, it is very best healthy material for us.

3. RELIABLE QUALITY

Our raw material are all international famous brand. Tank life-span can be over 1/4 century.

4. CONVENIENT INSTALLATION

Factory precast panel is easy to assemble and disassemble, the construction drawing, installation video, and a series of complete installation plan will be

provided.

5. SAVE SPACE

For argon arc welding type, all the welding process are handle from inside the tank, so there’s no need left space around of tank.

Attention of Stainless steel water tank:

1. When you order should provide water tank size, take over the place, diameter size.

2. Water tank can be supporting supply.

3. Use water injection temperature for the 4-65 is advisable. Water injection temperature higher than the value can be put forward in order to separately solve.

4. Water tank inside and outside of the other welding not welding, prevent damage smooth face.

5. Water tank to the ground under should with structure design personnel for approval shall prevail.

6. Water tank should be regularly cleaned, try to prevent water into the trash.

Stainless steel water tank is widely used in residential buildings, hotels, office buildings, R&D buildings, schools, malls, restaurants and other public facilities as well as places with high requirements for water quality, such as hospitals and food processing plants.

FAQ:

1.What is your advantage?
We have introduced advanced equipments with the newest technology. We can supply water tanks with 2x1m smc water tank panels, in addition to regular sizes of panels. WIth large quantity of panels in stock, we can guarantee a quick lead time and a more favorable price.

2. Do you provide installation guidance?
Yes, we can provide installation guide: installation video or installation assistance on site by our engineers.

3. How long is the delivery time ?
For standard water tank less than 100m3, it would be 3-5 days; For non-standard water
tank and customized water tank according to client s specific requirements, it would be 15 to 30 days.

4. What is the warranty time for your products?
The warranty time of our products is 24 months, which guarantees a good after-sale service.

5. What's the guarantee, in case the water tank breaks down?
The water tank has two year's guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client's feedback. Parts will be replaced for free if the problems are caused by quality fault.

Any need, please contact us at any time. Welcome to your inquiry.
