Marley 1220 width PVC Cooling Tower Fill Plastic Honeycomb Cooling tower infill Cooling tower fills

Introduction of film fill:

Cooling Tower PVC Fill also called cooling tower infill film media. It is one of the most important components in cooling tower. It's function is increase the exchange area of the gas and working fluid in order to achieve the requested cooling requirement. The working fluid was distributed onto the cooling tower PVC fill and spread into a thin film uniformly, by increasing the air-media interface and allowing waste heat to evaporate at an accelerated rate.

The heat resistance is the main factor influencing the cooling efficiency for the cooling tower PVC fill. And the quality of the raw material used for producing cooling tower PVC fill will influence the cooling tower fill's service time. We always adapt the high quality cooling tower PVC fill for the cooling tower.

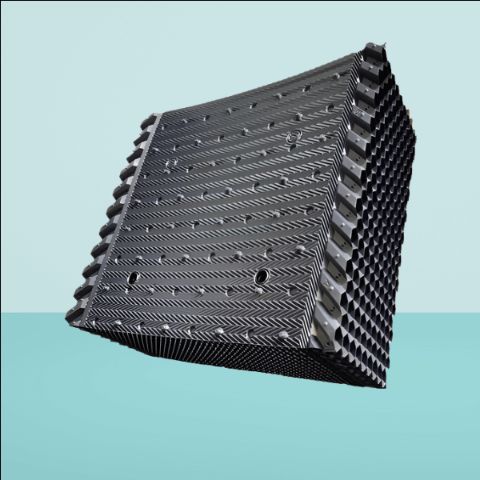

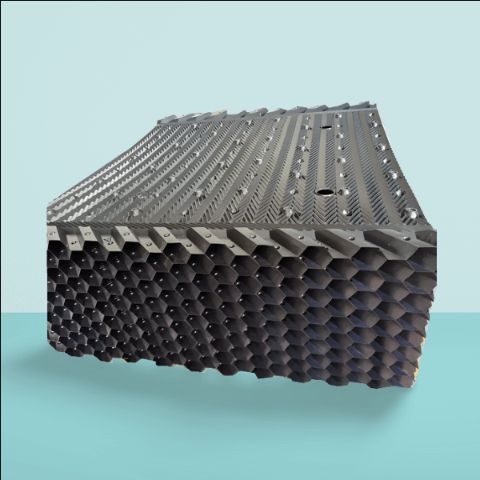

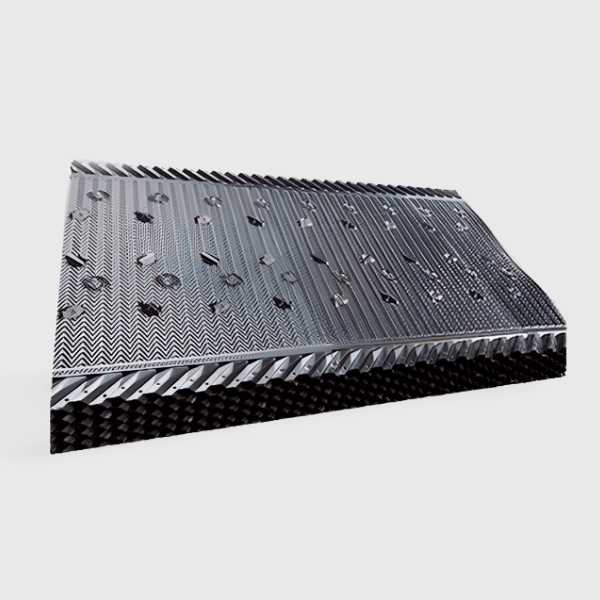

Marley series is a hanging film type cooling tower fill which spreads the water into a thin film, flowing over large vertical surfaces, promoting maximum exposure to air flow. This infill incorporates highly efficient cellular drift eliminators, integrally molded within the fill sheets. Width is available from 760mm to 1520mm to satisfy different cooling towers request.

Cooling tower fill, PVC filler for cooling tower:

1) Material: PVC, PP

2) Usage: Marley cooling tower, Marley NC8411

3) Size: 915*1220 mm, 915*1854 mm,915*any length, 1220*1854 mm, 1220*any length, 500*1000 mm, 610 mm

Specification of CF marley cooling tower film fill :

This fills has 2 types, type A and type B, installation method is hanging.

The heat resistance is the main factor influencing the cooling efficiency for the cooling tower PVC fill. And the quality of the raw material used for producing cooling tower PVC fill will influence the cooling tower fill's service time. We always adapt the high quality cooling tower PVC fill for the cooling tower.

Each size fill specifications:

Advantages for our PVC fill:

>> Good chemical stability

>> Anti-acid, anti-alkali

>> High cooling efficiency

>> Small ventilation resistance

>> Large cooling area

Application of film fill:

The cooling tower fill is easy to been glue by PVC glue, and also easy to been installed in machanical draft cooling tower, natural draft cooling tower, round cooling tower and Air-condition cooling tower.

We can custom as your demands to produce for you, Welcome to your inquiry.
