Industrial Plastic ABS Cross Flow Cooling Towers Short Stem cooling towers spray water Nozzle

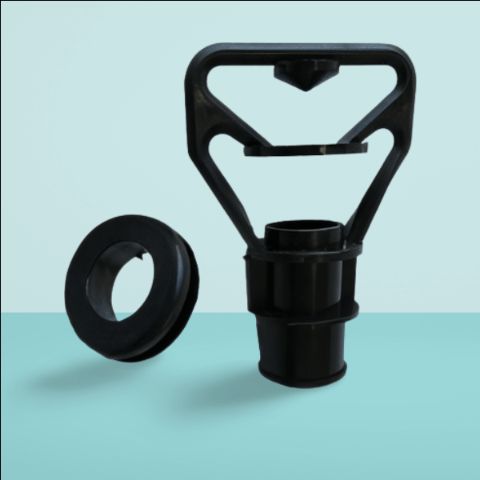

The Spiral Target nozzle is an injection molded polypropylene unit consisting of two parts-the main body with integral target diffuser and a snap-on insert or orifice cap.

The orifice cap is available in 13 diameters ranging from .362 through 1.099. This amount of flexibility allows for a wide range of adjustment in water flow rates and basin water levels.
The Spiral Target nozzle is available in three lengths. The 2.625 nozzle is used on wood, steel, and fiberglass cooling towers where basin support structure does not obstruct the release of water. The 4.875 nozzle is used on larger industrial wood and concrete cooling towers and on applications where clogging might be a concern. The 6.875 nozzle is used on towers where the release of the water has to clear obstructions within the tower structure.
In every application the target portion of the nozzle should be located at the correct distance above the top of the cooling tower fill to obtain maximum water distribution over the fill area.

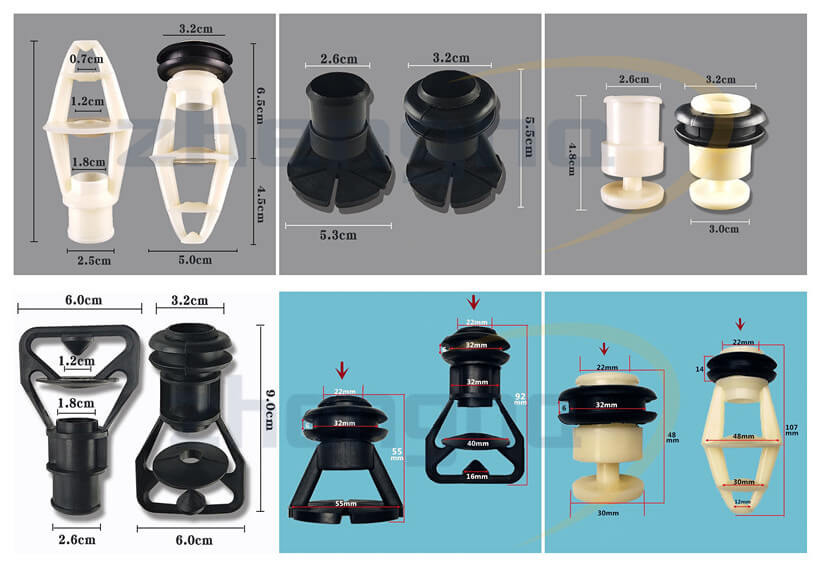

Specification of cooling tower nozzles:

Cooling Tower Spray Nozzle Working Principles:

Working fluid flowing inside of the coils, which is enwrapped by spray water on the outside.
The heat of water is transferred by coil and become the saturated vapor when meet the water and air.The heat is exhausted out of the tower by the tower by the top fan; water is collected back to the bottom tank and circulates continuously.
The spray water is cooled down via PVC radiation fin in the process of circulation, and flows the same direction with the fresh wind. The coil mainly takes sensible heat travel style. The most benefit of this style is can avoid scale formation on the outside of the coil. And this will apply especially to dealing with high temperature fluid (e.g. 60℃) or the fluid need big temperature difference (e.g. 60℃ to 35℃).

FAQ

1. What is the MOQ of Cooling Tower Nozzle?

The MOQ is 100 PCS.

2.What is the lead time?
The lead time is around 3 days to 5 days, based on your quantity.

3. Can you offer the free samples,how can we get
Yes,we can offer free samples for you testing the quality, you may pay for the freight.

4. How can we choose the shipping way?
For the small order,we suggest to ship by DHL,FEDEX,UPS door to door service. It will take 3-5days.
For the larger order,we suggest to ship by sea.If urgent,you can als choose air shipping.
