Product description:

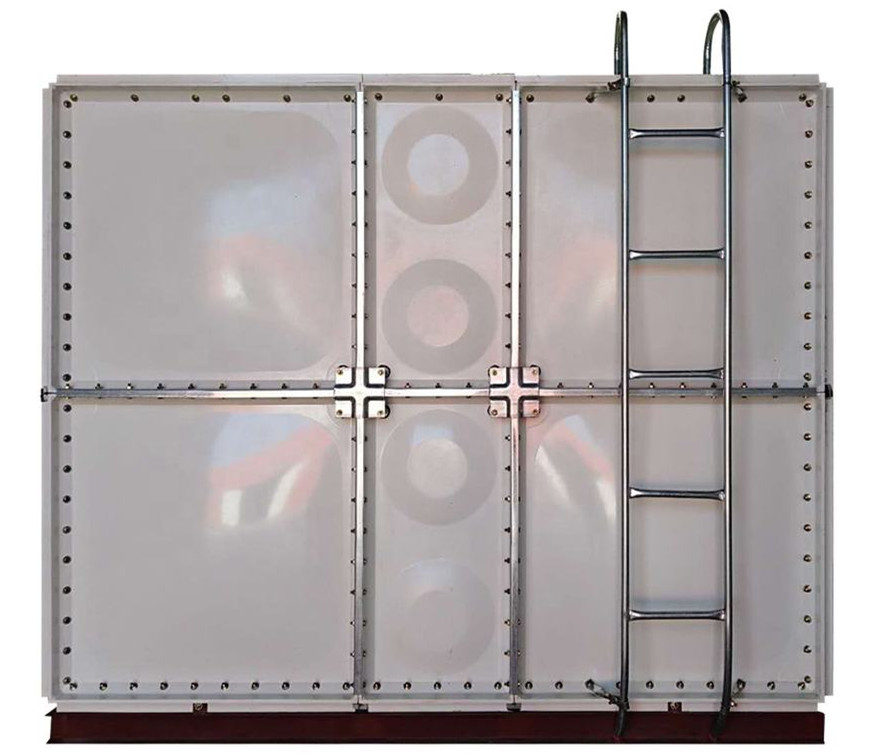

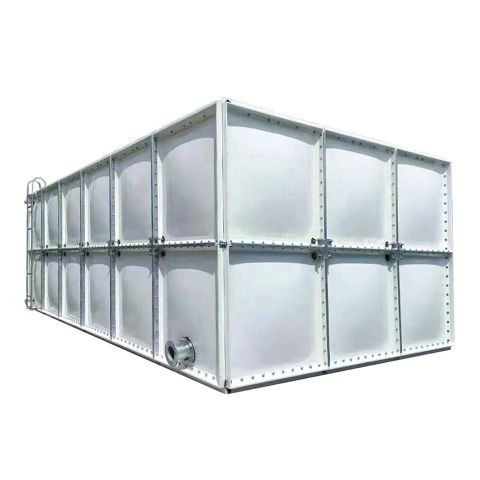

GRP Water Tank is made of fiberglass reinforced plastics which is divided into FRP modular type and SMC combination type. The major advantage is light weight, anti-rusted, non-leakage, long durable time and easy to clean. It is widely used in hotel, school, hospital and coal mine enterprise.

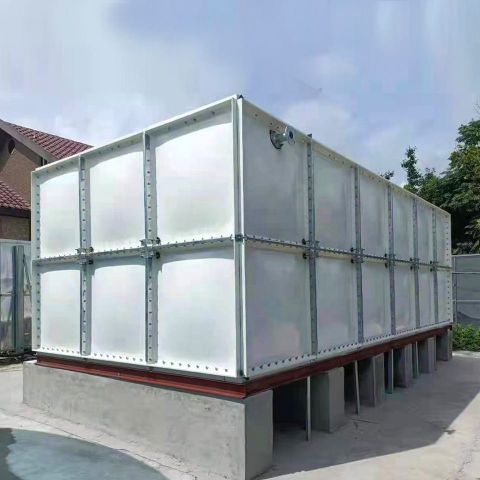

GRP water tank combined with the SMC molding panel, sealing materials, metal structure and piping system to onsite assemble together. We can assemble water tanks with 0.125m3-125,00m3 according to your need.

COST-EFFECTIVE:

FRP/GRP is a kind of high-technological reinforced plastic. It has low cost and high performance, is a perfect substitute of metal tank.

RELIABLE QUALITY:

Our FRP/GRP's raw material are all international famous brand. The life-span can be over 1/4 century.

DIMENSION FLEXIBILITY:

The size of panel can be 1*1m,1*0.5m and 0.5*0.5m, which can assembled kinds of volume from 0.125m3 to 5000m3.That's extremely
convenient to select for you.

CONVENIENT INSTALLATION:

Factory precast panel is easy to assemble and disassemble,the construction drawing, installation video, and a series of complete
installation plan will be provided.

POTABILITY:

FRP/GRP material has passed local Water Quality Inspection testing.Test result shows our FRP/GRP are suitable for potable water
reserve. Roof panel adopt upward bulge to prevent rainwater remain on the top. Further prevent mosquito breeding and dirty water
permeate inside the tank.

APPLICATION:

1. Potable Water Storage Tanks
2. Agricultural Irrigation Tanks
3. Septic Tanks and Sewage Tanks
4. Distillation and Process Tanks
5. Fire Reserve Storage Tanks, Swimming Pool Balance Tanks
6. Hot Water Storage Tanks and Chemical Substance Storage Tanks
7. Rain Water Harvesting Tanks, Well Water Tanks, Sea Water Tanks
8. Reverse-Osmosis Water Tanks(water with high or low conductivity)
9. Industrial Process Tanks, Chiller Water Tanks, Cooling Tower Water Tanks

Physical properties of GRP water tank:

PANELS SIZE & WEIGHT:

1. The size of FRP/GRP panel are produced by standard mould, having size 1*1m,1*0.5m and 0.5*0.5m.

2. Panel thickness is depends on tank height.

3. The available highest height is 5 meters (Add external C channel or I-beam reinforcement for 4m and 5m height).

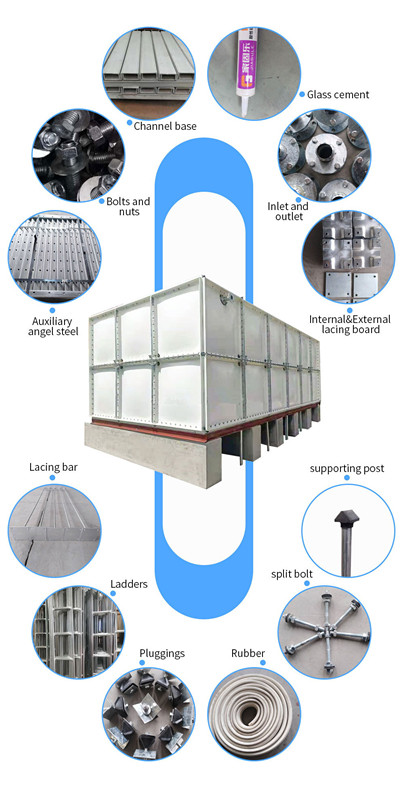

Accessories of GRP water tank:

PANELS MATERIAL:

1.Food grade unsaturated polyester resin

2.Alkali free twist glass fiber roving

3.Thickener (MgO), initiator (curing agent),cross linking agent,etc.

Warehouse of water tank :

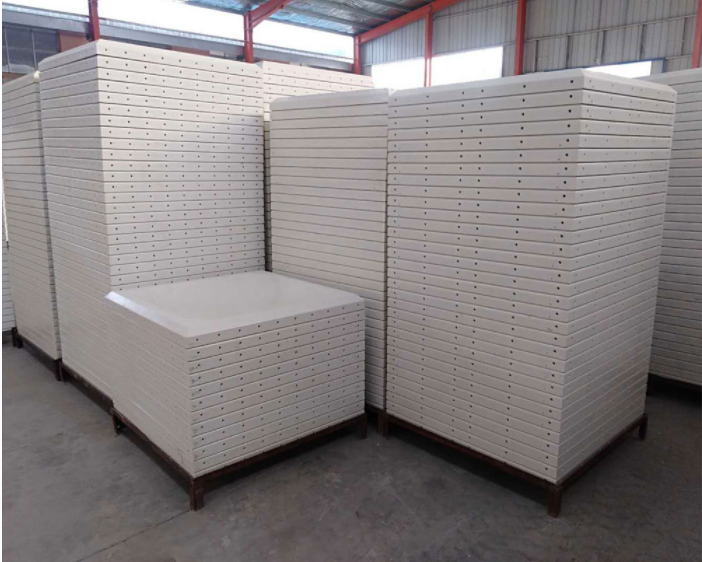

Panel stock:

Thanks for your visit, welcome to your inquiry.
