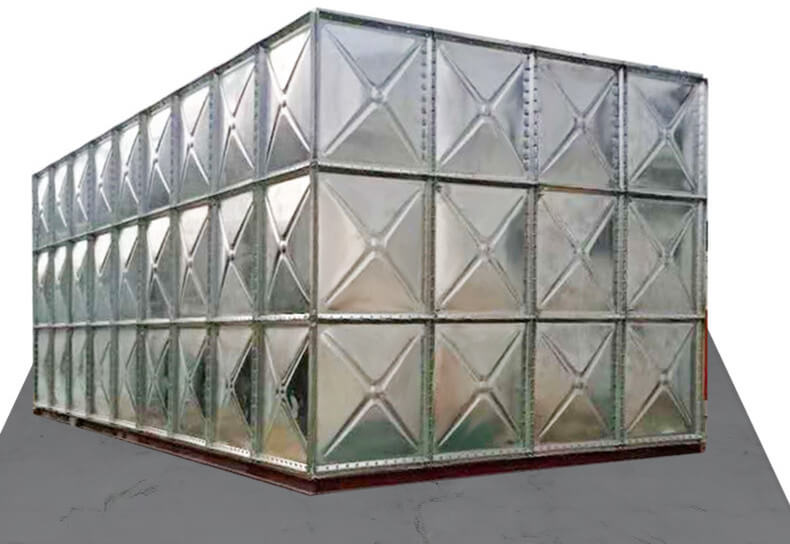

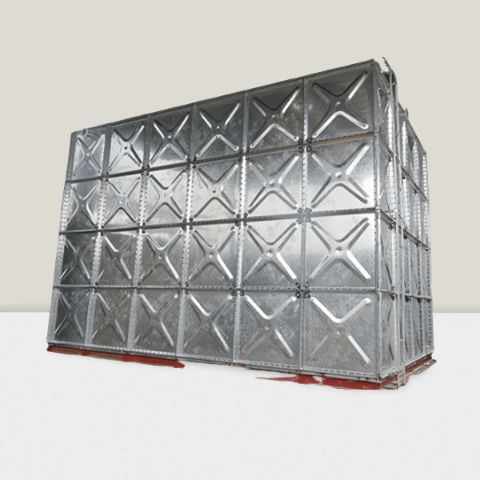

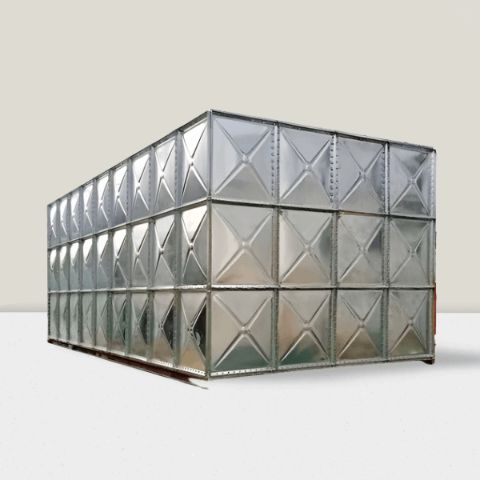

HDG galvanized steel water storage tank sectional firefighting galvanized steel water tank

HDG water tank description:

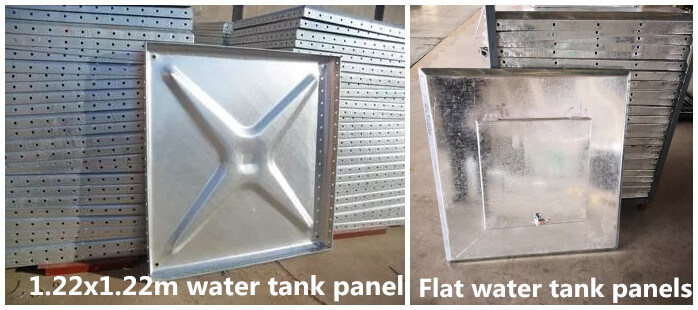

Galvanized Steel Water Tank is punched by Q235A into 1220mm*1220mm or 1000mm*1000mm and 1000mm*500mm, 500mm*500mm standard plates, drilled around, after HDG treatment, and assembled at site. When combined, the gap between two standard plates is sealed by silicon pad, and connected by bolts.

Our water capacity varies from 1.0 cubic meter to 1000 cubic meters, height may reach as great as 5 meters. Inflow, outflow tubes as well as return tube's diameter and place is decided by the designer, passages of at least 7000mm is needed around the tank.

Hot dipped galvanized steel water tank is anti-corrosion, anti-aging, no distorsion, no infiltration and leakage. Tank is easy to clean and conveniently to install and assemble. It can storage not only hot water, but also cold water, and has a better shockproof and shock resistant ability.

HDG water tank Introduction:

 1. Material

   The sectional panel tank shall consist of 4' x 4' or 1 meter x 1 meter panel manufactured from 1.5mm to 5.0mm thickness according to requirement.
2. Flanges
    The sectional panels shall be pressed to double flanges at the angles of 45 degree and 90 degree to the face of the plate on four sides.

3. Reinforcement Method
   All tanks are internally braced with angle stays to endure the rigidity of the tank when filled with the water. The Top panel is supported by top panel support, which shall be

made of stainless steel grade 304 or 316 material according to requirement.

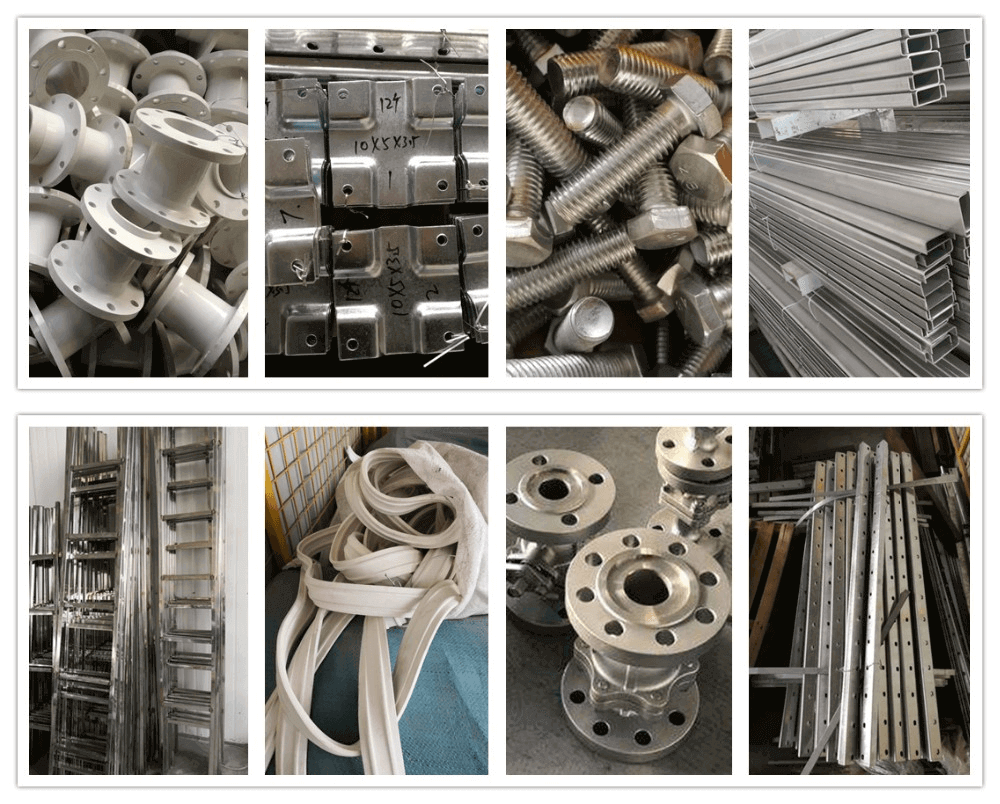

4. Accessories
1) Bolts, nuts & washers, stainless steel 304 material.
2) Sealing material Non-toxic P.V.C foam tape shall be used in between the joints.
3) Covers The tank cover shall be constructed from 1.2mm to 3.0mm of thickness stainless steel 304 material according to the requirement.

4)  Ladders and Level Indicator: Internal & external ladder shall be made of stainless steel grade 304 material.

HDG water tank Structure:

HDG Tank Structure:

HDG water tank includes four parts:

1) Panels ( Bottom panel, wall panel, roof panel and manhole);
2) Internal parts ( Internal ladder, tiepiece rod, support, flanges and rubber);
3) External parts ( External ladder, angle iron, tiepiece board, bolts and nuts);
4) U-steel base (surface treatment can be painted or hot dipped galvanized or stainless steel).

HDG water tank Physical Properties:

HDG water tank panel thickness is 1.5mm-5mm. The standard tolerance of thickness is 0.25mm. For example, the actual thickness of 3mm is 2.75mm.

HDG water tank installation:

For installation, We can provide installation guide: installation video or installation assistance on site by our engineers.

If parts are damaged within the quality insurance period because of quality fault, we will change the damaged parts free of charge.

Water tank Usage, Repair and Maintenance:

1. When connect the pipe, please don't put excessive pressure on both inlet and outlet of the pipe;

2. Don't put the weight of valve and large diameter pipe on the tank outlet. When connect, please set pipe support or lifting support;

3. When the welded pipe expand, contract and vibrate, ,please must install stretched flexible connectors;

4. Water tank allocation and accessories: cabinet,  U-steel base, organic glass tube level gauge, maintenance hole with lock, ladders for both inner and outer of the cabinet, short pipe and flange for cabinet.

HDG water tank Features:

1.  Excellent UV and weather-resistant characteristics; Corrosion resistant; anti-rusted.

2.  High strength and Durability.

3.  Non-leakage.

4.  Excellent Hygienic, good water quality: non-toxic and corrosion from panels and prevent bacteria increasing.

5.  High seismic tolerances; Does not deform or dent.

6.  Low thermal conductivity and excellent thermal insulation.

7.  Easy to clean and maintenance management convenient.

HDG water tank Application:

1) Storage and regulation of living water supply & construction water supply

2) Rainwater Harvesting & Storage

3) Effluent/Acid and alkali solution treatment & Storage

4) Hospital,buildings,building site, school and other place

5) temporary water storage for expansion of the heating system, condensate tank and construction, geological survey, industry, National defense project etc

FAQ:

1. What is your advantage?

We have introduced advanced equipments with the newest technology. We can supply water tanks with 2x1m smc water tank panels, in addition to regular sizes of panels.

WIth large quantity of panels in stock, we can guarantee a quick lead time and a more favorable price.

2. Do you provide installation guidance?

Yes, We can provide installation guide: installation video or installation assistance on site by our engineers.

3. How long is the delivery time?

For standard water tank less than 100m3, it would be 3-5 days; For non-standard water

tank and customized water tank according to client s specific requirements, it would be 15 to 25 days.

4. What is the warranty time for your products?

The warranty time of our products is 12 months, which guarantees a good after-sale service.

5. What's the guarantee, in case the water tank breaks down?

The water tank has one year's guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client's feedback. Parts will be replaced for free if the problems are caused by quality fault.

Welcome to your inquiry.
