place of origin: Hebei
Material: PP PVC
Processing Service: Molded
Packaging: Pallet as client's demands
Transportation: By sea / By air/ Express etc
Products Description:

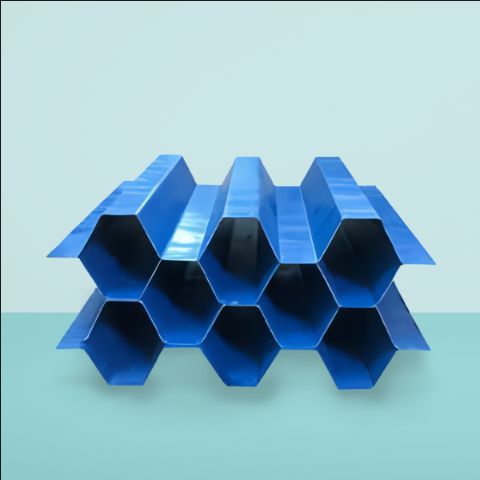

Tube settler media is very suitable in all differentclarifiers and removing sand. It is regarded as universal water treatmentequipment in water supply and drainage engineering. It has wide application,high handling efficiency, small area, etc. It is suitable in removing sandin inlet, industry and drinking water precipitation, separation in oil & water.The modular and cubical self-supporting settler design ofHoneycombed Inclined Tube Settlers aids handling during installation andany subsequent maintenance.
The design of tube settler media avoids thin wall membranesand utilizes forming techniques to minimize component stress andsubsequent environmental stress cracking fatigue. Tube settler media offers an inexpensive method ofupgrading existing water treatment plant clarifiers and sedimentation basins toimprove performance. They can also reduce the tank age/footprint required innew installations or improve the performance of existing settling basins byreducing the solids loading on downstream filters.
Products Paramenters:
Material | Aperture(mm) | Thickness(mm) | Quantity (pcs/m2) |
PP White/Black | 25 | 0.4 | 60 |
30 | 0.4/0.6/0.8/1/1.2 | 50 | |
35 | 0.4/0.6/0.8/1/1.2 | 44 | |
40 | 0.4/0.6/0.8/1/1.2 | 40 | |
50 | 0.4/0.6/0.8/1/1.2 | 32 | |
80 | 0.4/0.6/0.8/1/1.2 | 20 |
Material | Aperture(mm) | Thickness(mm) | Quantity (pcs/m2) |
PVC Blue/Black
| 30 | 0.4/0.6/0.8/1 | 50 |
35 | 0.4/0.6/0.8/1 | 44 | |
40 | 0.4/0.6/0.8/1 | 40 | |
50 | 0.4/0.6/0.8/1 | 32 | |
80 | 0.4/0.6/0.8/1 | 20 |

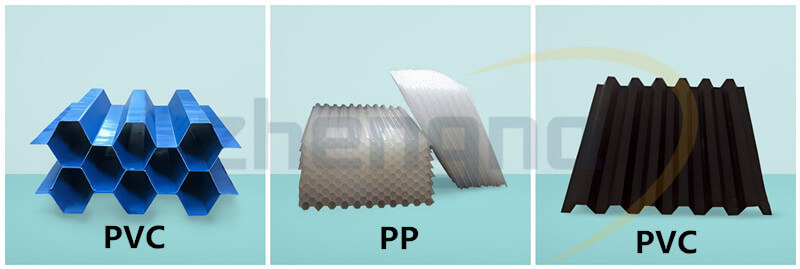

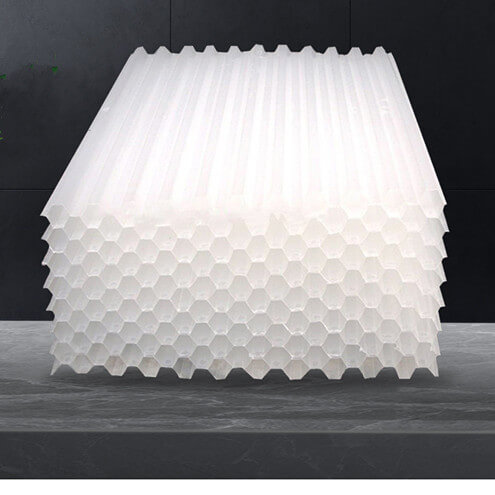

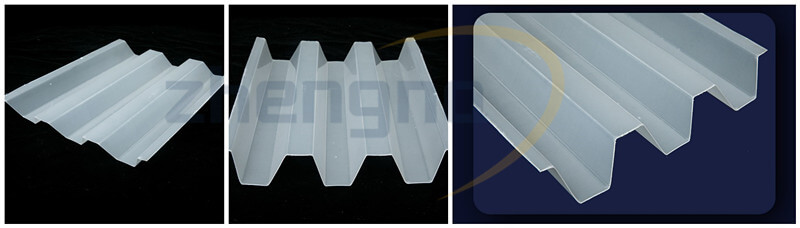

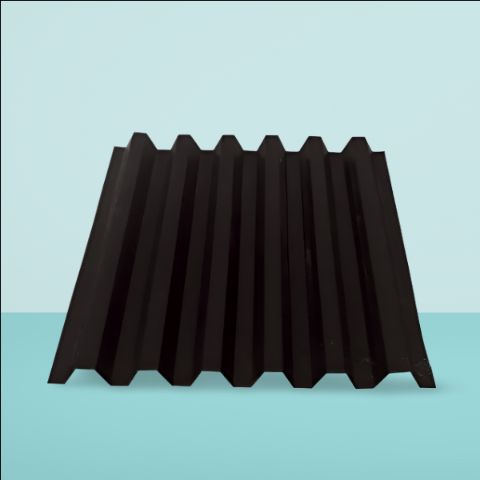

Product shows:

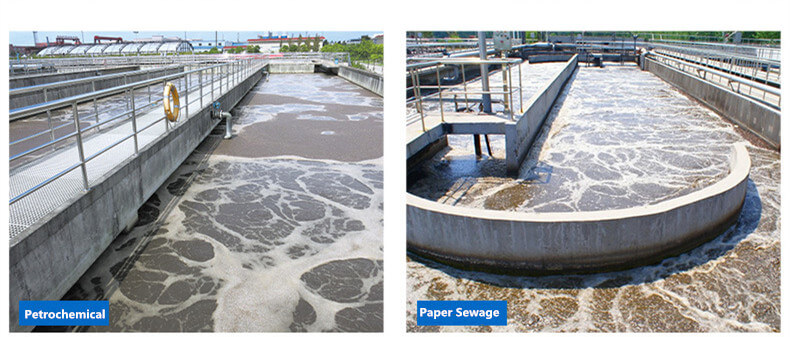

Product Application:

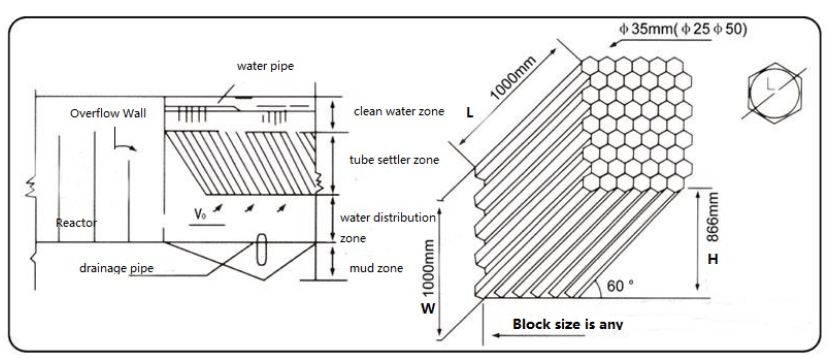

Design and build new clarifiers and settling tanks equipped with tube settlers >> Retrofit existing clarifiers and sedimentation basins with tube modules to increase settling capacity and increase throughput >> Provide replacement tube modules for existing installations Our Environmental designs and builds liquid cleaning and recycling equipment including: >> Circular Clarifiers >> Parallel Plate Settlers >> Tube Settlers >> Horizontal and Vertical Clarifiers >> Air Strippers >> API Separators >> Oil Recovery Units >> Complete Engineered Systems
