Anti slip plastic floor grating walkway grid mesh grating

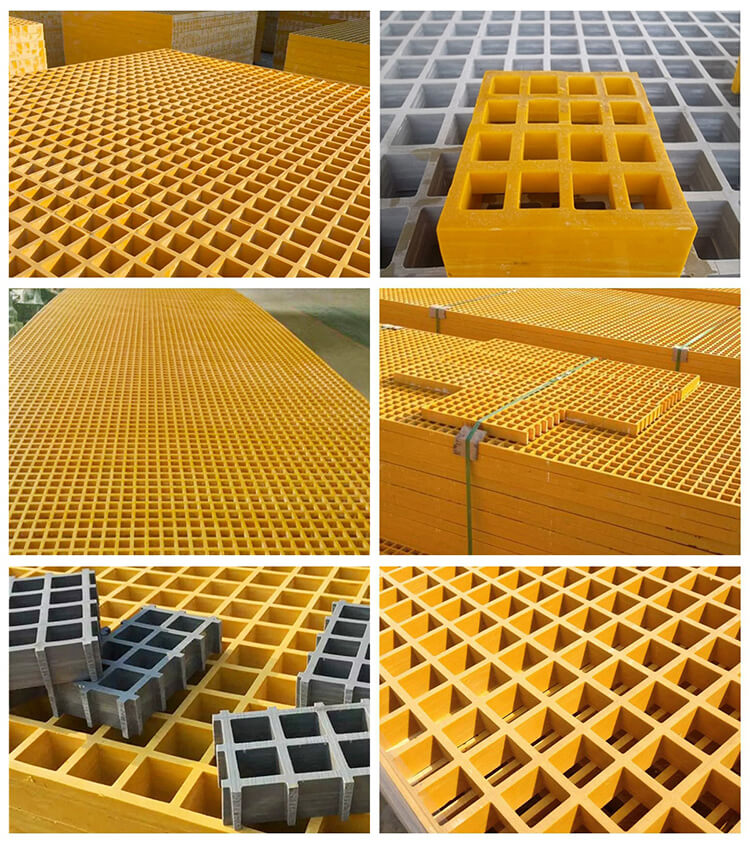

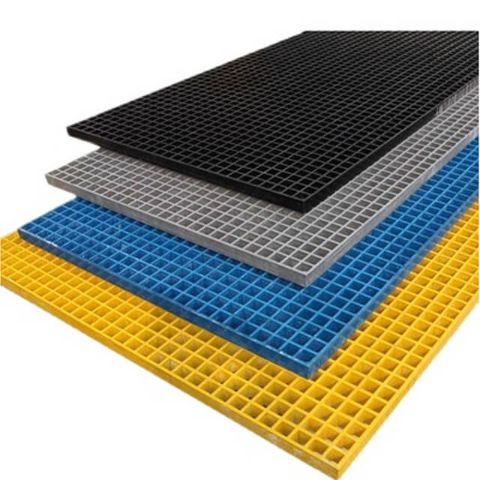

Product Description of frp grating:

Molded FRP grating consists of continuous glass strands encased in resin and wrapped in a surfacing veil which protectsthe fibers and allows resin to saturate the outermost part of the bar as well as penetrate between the glass fibers. This ensures a smooth and corrosion-resistant surface, with a higher glass/resin ratio than molded products. The individual bars.are then assembled using two-piece cross bars and epoxy to mechanically join the load bars.

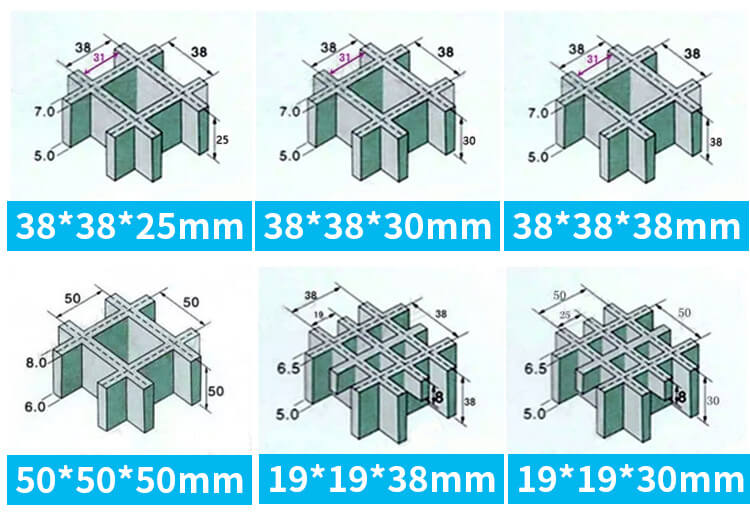

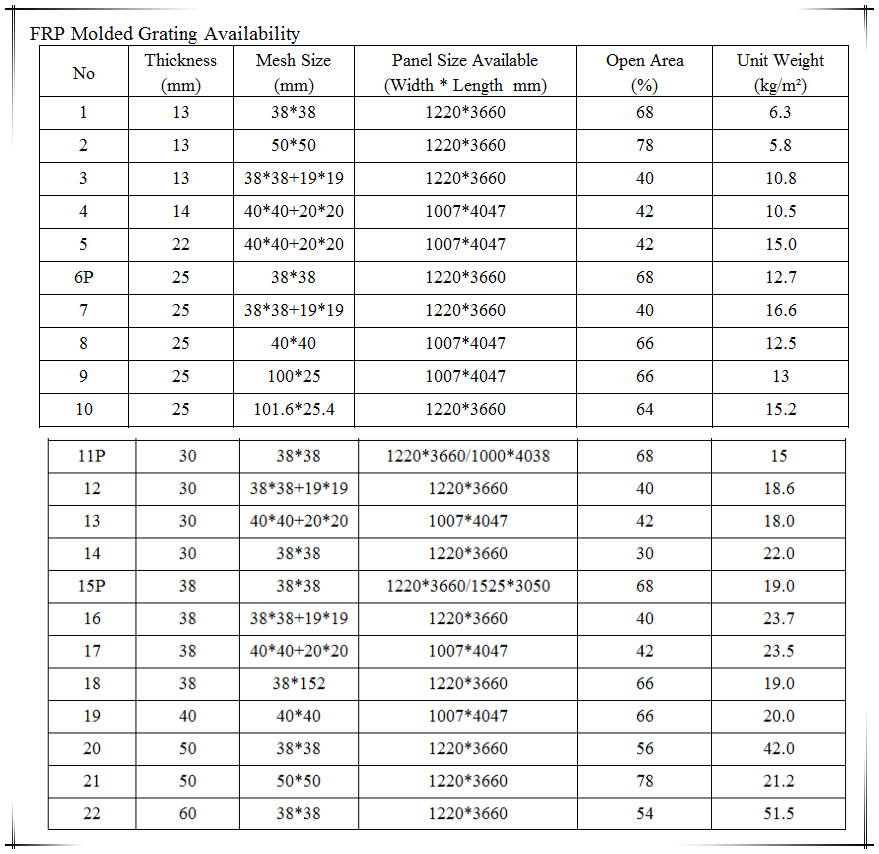

Common size of frp grating:

Following 6 types frp grating is hot selling type.

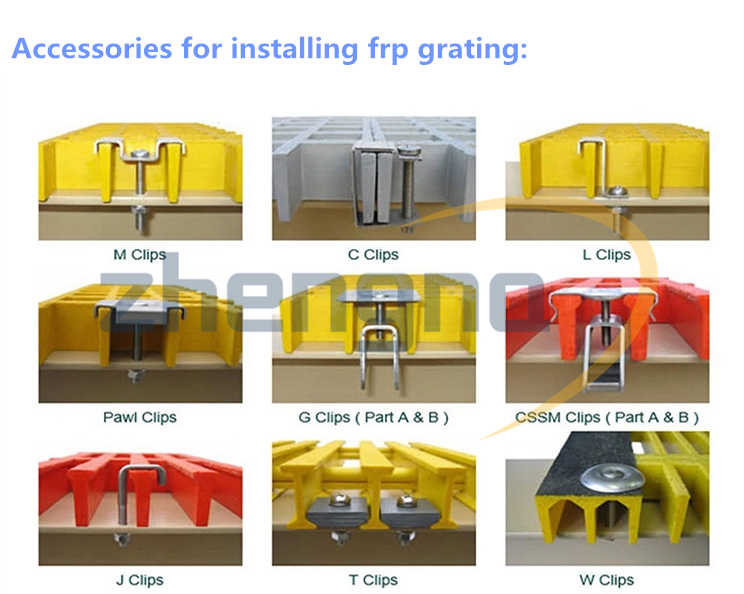

Accessories for installing frp grating:

Product Features of frp grating:

1. Thickness: 25mm, 30mm, 33mm, 38mm, 50mm, 65mm etc

2. Mesh Size: 1.5”x1.5”, 2.0”x2.0”, 1.0X4.0” 1.0X6.0”, 1.5”x6.0”, mini mesh 20x20(up)/40x40mm(down), 19x19/38x38mm

3. Panel size: 3’x8’, 3’x10’, 3’x12’, 4’x8’,4x10’, 4’x12, 5’x13’,We can cut into any size less than the above panel size.

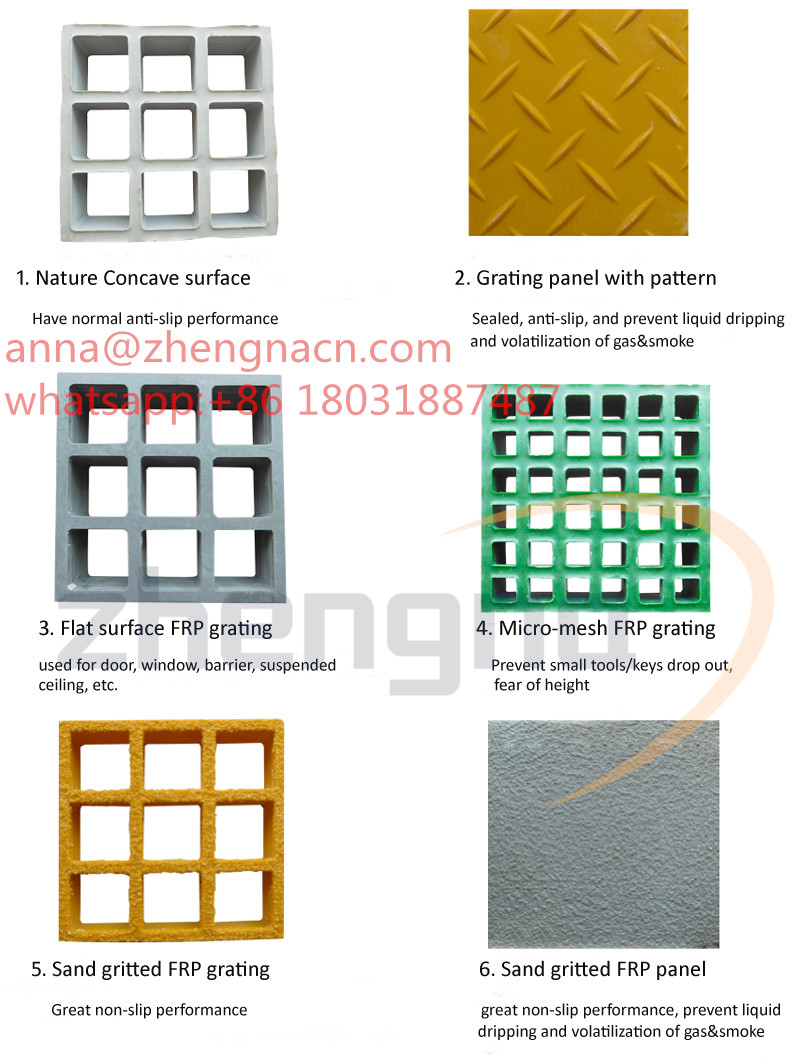

4. Surface: Surface can be flat,gritted,solid/covered or concave.

5. Advantages:

>>Corrosion resistant, fire retardant,impact resistant high strength, non-magnetic, non-conductive, non-sparking, light weight, easy to install and maintain.

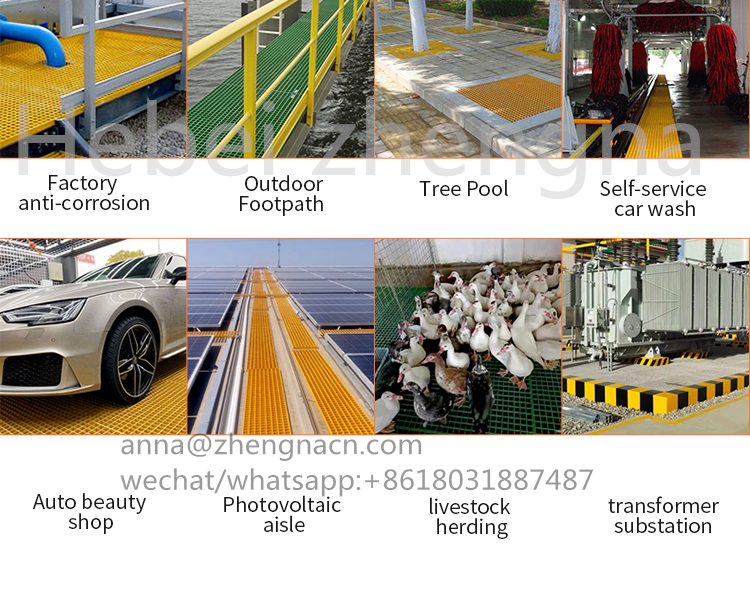

FRP grating application:

FRP Grating has widely used in factory anti-corrosion, outdoor footpath, tree pool, self-service car wash, auto beauty shop, photovoltaic aisle, livestock herding and transformer substation.

FAQ:

1. Are you factory or trading company?

We are factory, so while we control the quality of grp gratig and also have advantageous price.

2. Sample Policy?

Samples are free of charge. You only need to pay shipping. We’ll refund you the shipping fee when you place order.

3. Quality Control?

Full-time QC staff inspecting every production process from materials booking to delivery.

4. Customization?

Accpetable.

5. Information needed for accurate quotation?

* Mesh Size

* Panel Thickness

* Panel Size

* Surface Treatment

* Resin Type

* Color (or RAL No.)

* Bar Thickness

* Quantity
