4.5mm-18mm cable rod with any length Fiberglass duct rodder conduit cable puller

Technical Data of Fiberglass Duct Rodder:

Glass fiber reinforced plastic (FRP) grating is a glass fiber reinforced material,

Duct Rodder, conduit duct rod, cable puller etc also called fiberglass duct rodder is composed of three parts: internal copper/steel wire(can choose), fiberglass rod, and outer polyethylene coating or ABS. Its nature passing through under ground ducts by ups, down negotiating the duct curvature thus very convenient to pull the cables , wires inside the duct , also it can be used to locate the duct block or damage portion identifications . So it is selected as a special tool for pulling electric cables and optical fiber cables in telecom, power industries, buildings and many other fields. The rod is made of fiberglass and high strength resin at high temperature, it is coated by high density polyethylene engineering plastic as its protected layer, which makes the duct rodder cover sliding on surface, durable, corrosion resistant and has good insulation performance, these make it safe for using in cable occupied duct. Along with pull head and handcart, it features easy to move and operate.The FRP push pull rod will be equipped with different size of reels in accordance with the length of the rod, there are wheels on the reel to make it convenient for moving, it is an ideal tool for laying cables.

Common size Duct Rodder specification details:

We can custom according to client's size (diameter*length), color etc any demands.

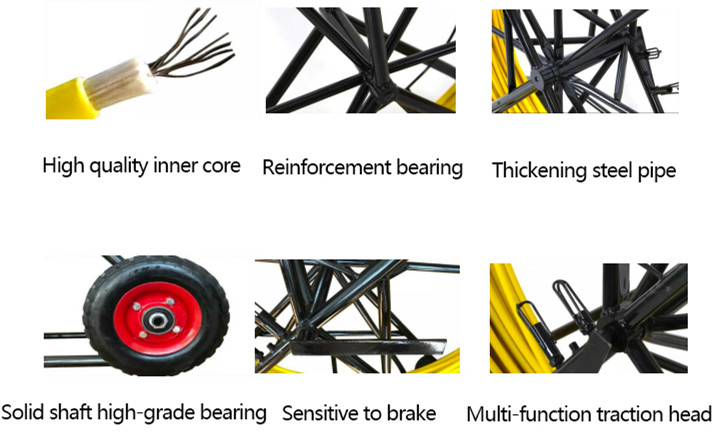

Accessories details of Duct Rodder:

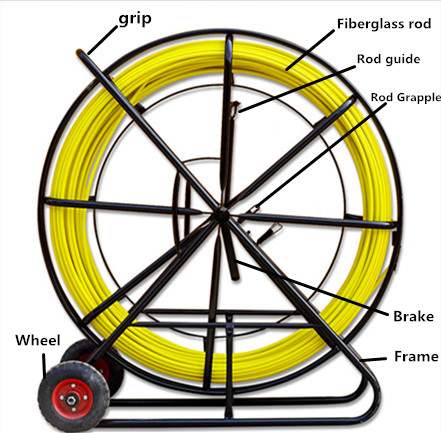

Duct rodder accessories include: Fiberglass rod, Rod guide, Rod grapple, grip, Brake, wheel & cooper head.

Cooper head is different based on different diameter of rod.

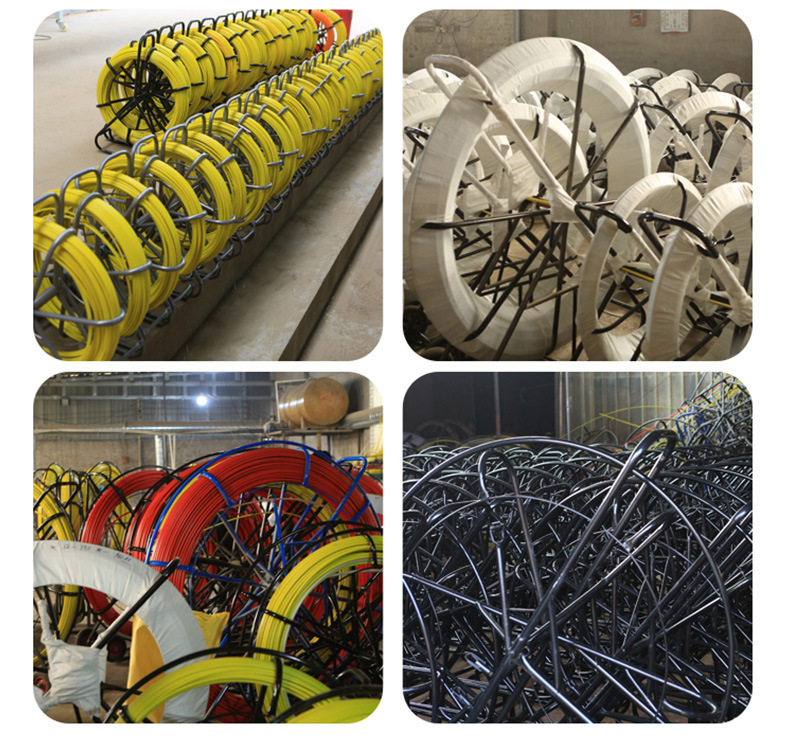

Stock of rodder:

FAQ:

1. Are you factory or trading company?

We are factory, so while we control the quality of grp gratig and also have advantageous price.

2. Sample Policy?

Samples are free of charge. You only need to pay shipping. We’ll refund you the shipping fee when you place order.

3. Quality Control?

Full-time QC staff inspecting every production process from materials booking to delivery.

4. Customization?

Accpetable.

5. Information needed for accurate quotation?

* Diameter of rod

* Length of rod

* Color of rod

* Quantity

Thank you for your visit, Welcome to inquiry. Email: anna@zhengnacn.com
