Cross flow cooling tower fill for Liangchi cooling tower 750*800mm

Specification of Liangchi cooling tower fill:

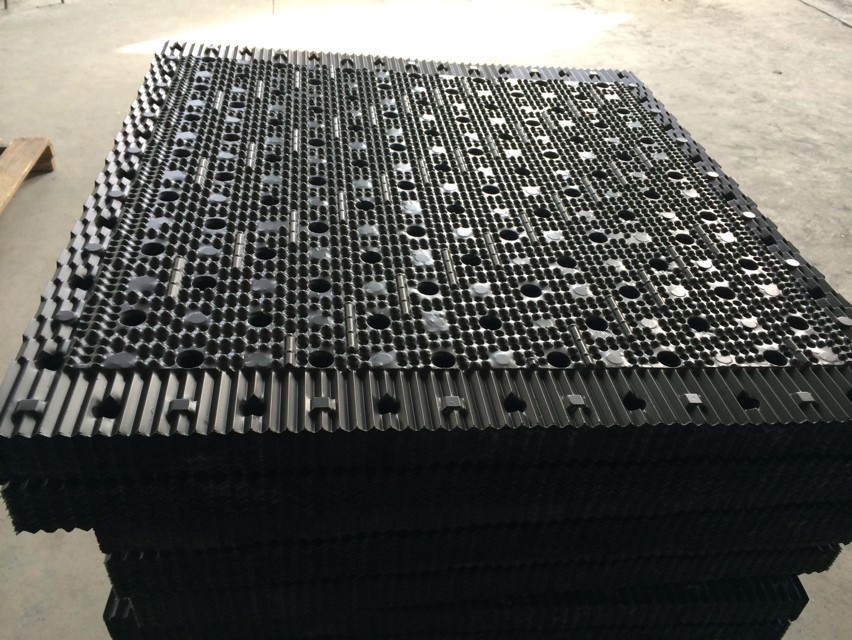

Liangchi cooling tower fill is one of our major cross flow cooling tower fills. This liangchi cooling tower fill is distinguish into A and B on the surface, which is different for gluing Point. The distance between two pieces are 19-20mm more or less. The thickness are 0.27mm to 0.38mm, the length and the width is fixed. There are 4 sizes per piece : 750mm*800mm/piece,750mm*1600mm/piece,1000mm*1200mm/piece and 375mm*800mm/piece.

Cooling tower fill introduction:

Anti-aging PVC Cooling Tower Fill for Crossflow Cooling Tower could be used widely for the Liangchi cooling towers. In all of our products, I did my best to explain LC cooling tower fill media. So, whether you're looking for PVC fill media or other cooling tower parts, we will help you choose the best sizes of LC cooling tower fill media for you need.

Liangchi cross flow cooling tower fill is a hanging film type cooling tower fill which incorporates highly effcient cellular drift eliminator and molded with the air inlet louver, spreads the water through the thin film, flowing over large vertical surfaces, promoting maximum exposure to air flow to get higher cooling efficiency. This type of cooling tower fill provides much more water surface exposure per cubic foot than splash type fill.
Applicable for replacing Liangchi cooling tower and cross flow cooling tower with SGS test in ASTM standards to keep high quality cooling tower infill to get the high efficiency of the cooling tower. Hanging or glued method are all available for cooling tower fill blocks. Thermoformed from raw PVC material with a flame spread rating and considered self extinguishing.

Advantages of our Liangchi cooling tower fill:

Advantages:

1) Good raw material of 100% new PVC.
2)  Proper glue point for you to install the cooling tower fill in block easily.
3) Size can be cut by customer or we cut the stipulated size for customer
4)  Loose sheet can be loaded in the container with less space.
5) Supply the freely glue sample or glue a small sample to indicate you how to glue them.

We have various cooling tower fills, such as BAC, MARLEY, KUKEN, BRENTWOOD, SPINDLE, etc. Please contact us to get more informaton.

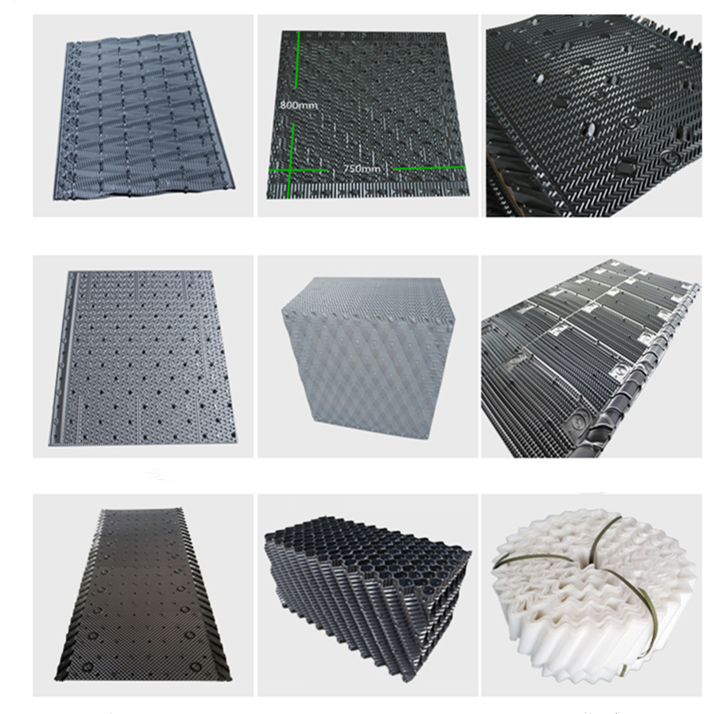

Here are some of our other cooling tower fills:

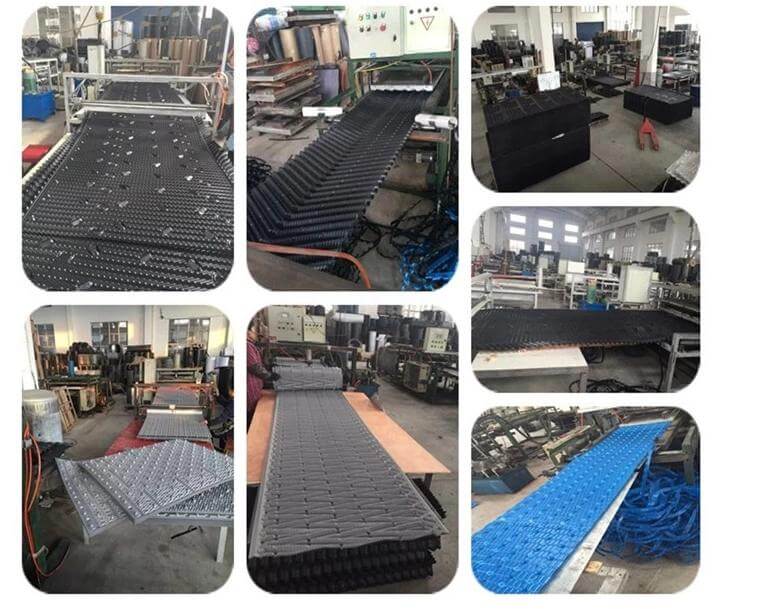

Production of our cooling tower fill:

 More types of cooling tower fill in production.  If you want to know more, please feel free to contact me. anna@zhengnacn.com
